A sudden pipe leak can quickly spiral into a costly disaster within minutes. Whether it’s a pinhole spray or a slow, unnoticed drip, acting fast is the difference between a simple fix and serious water damage that disrupts your entire system.
The good news? You don’t always need to replace the pipe.
A pipe repair clamp is a fast, reliable, and cost-effective solution that can stop leaks instantly—often installed in under 10 minutes using only basic tools.
Think of it as a high-pressure sealing system:
- The outer clamp (metal shell) provides strength and compression
- The rubber gasket forms a tight seal over the leak
- Together, they instantly stop water from escaping
For emergency situations, a pipe repair clampis one of the most practical solutions available.
What Is a Pipe Repair Clamp?

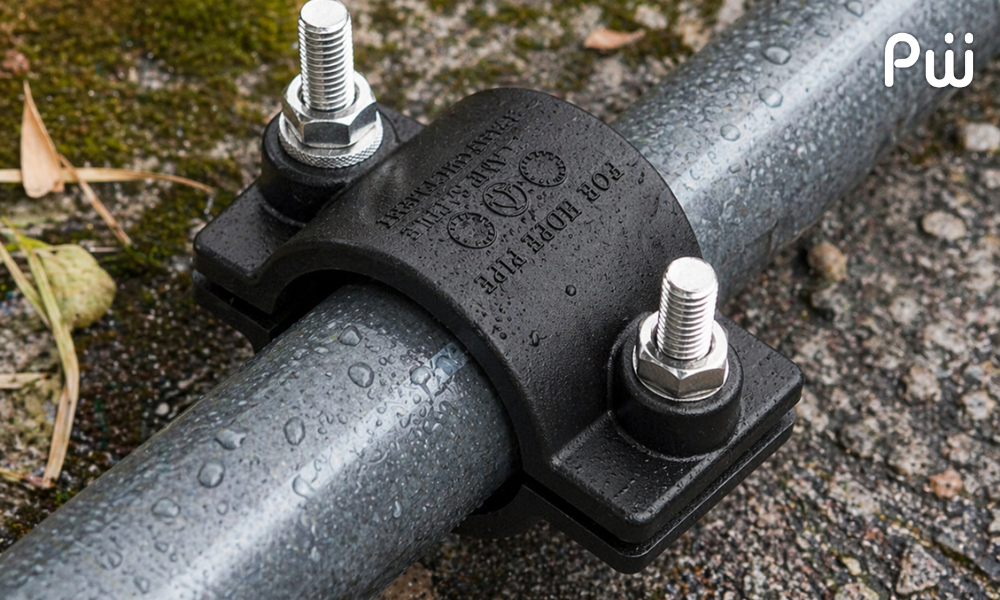

A pipe repair clamp(also known as a pipe leak clamp or repair sleeve) is a mechanical fitting designed to seal active leaks on pressurized pipelines without cutting, welding, or replacing the pipe.
It works by compressing a durable rubber gasket tightly against the damaged area, creating a secure, watertight seal that prevents further leakage.
Common Applications:
- Water supply and distribution pipelines
- Irrigation and agriculture systems
- Industrial and process piping
- Drainage and wastewater systems
This makes it a versatile solution for HDPE pipelines and conventional piping systems across residential, commercial, and industrial environments.
Is Your Leak Suitable for a Pipe Clamp?
Not all leaks require full replacement, but not all can be repaired with a clamp either.
A pipe repair clamp works best when the pipe is still structurally sound.
You can use a clamp if you see:
- Pinhole leaks spraying fine mist
- Small hairline cracks
- Minor corrosion spots with slow leaks
Avoid using clamps if:
- The pipe is fully cracked or broken
- The damage is at joints or bends
- The surface is heavily rusted or uneven
In short: Clamp = temporary solution for minor damage on straight pipe sections
Choosing the Right Pipe Repair Clamp
HDPE (High-Density Polyethylene) pipes are widely used due to their:
- Flexibility
- Corrosion resistance
- Ability to handle ground movement
However, this also means clamp selection must be precise.
Key considerations for HDPE pipe repair:
- Use high-quality rubber gaskets for proper sealing on smooth surfaces
- Apply controlled tightening to prevent pipe deformation
- Choose full-circle clamps for even pressure distribution
- Ensure exact OD (outside diameter) matching
How to Measure Pipe Size Correctly (Critical for Leak Prevention)
One of the most common causes of clamp failure is incorrect sizing.
Pipe sizes are based on inside diameter (ID), but clamps must match the outside diameter (OD).
Simple Measurement Method:
- Wrap a string around the pipe
- Mark the overlap point
- Measure the length
- Divide by 3.14 (π)
- This gives you the exact OD.
Common Applications:
- 1/2″ – 3/4″: Household supply lines
- 2″: Drainage and internal piping
- 4″ and above: Main pipelines and industrial systems
Step-by-Step: How to Install a Pipe Repair Clamp
Installing a pipe repair clamp is simple and efficient.
- Step 1: Shut Off Water Supply
- Step 2: Clean the Pipe Surface
- Step 3: Position the Clamp
- Step 4: Tighten the Bolts Evenly
- Tighten one side slightly
- Alternate to the opposite side
- Repeat until secure
- Step 5: Restore Water Supply
When Is a Pipe Clamp Not Enough?
While effective, pipe repair clamps are generally temporary or semi-permanent solutions.
You should seek professional repair if:
- Leaks occur at joints or fittings
- Pipe damage is severe
- The system operates under very high pressure
Tips: Always monitor the repair for at least 24 hours after installation.
Pipe Repair Clamp vs Permanent Repair
| Solution | Use Case | Duration |
| Pipe Repair Clamp | Emergency leak control | Short to medium term |
| Pipe Replacement | Severe damage | Long-term solution |
