HDPE compression fittings are widely used for water supply, irrigation, and industrial systems. This is because they are flexible, corrosion-resistant, and can handle ground movement.
However, when it comes to joining HDPE pipes—especially for repairs or smaller installations—compression fittings are one of the easiest and fastest solutions.
No electricity. No fusion machine. No heat.
What Are HDPE Compression Fittings?
HDPE compression fittings are mechanical connectors designed for PE pipes.
As a result, they are very different from traditional metal compression fittings used for copper pipes.
Instead of using heat (like fusion methods), they create a seal in a simple way:
- Compressing an O-ring around the pipe
- Using a grip ring to hold the pipe firmly in place
Why Use Compression Fittings?
In practice, compression fittings are ideal when you need:
- Quick installation
- Easy repairs
- No special equipment
- Work in tight or remote spaces
For example, they are commonly used for:
- Maintenance and repair works
- Service connections
- Irrigation systems
- Temporary bypass lines
Key Parts of a Compression Fitting
Typically, HDPE compression fittings include these essential components:
1. Body
The main housing (usually made from polypropylene).
2. Compression Nut
Tightens the fitting and activates the seal.
3. Grip Ring
Locks the pipe in place and prevents pull-out.
4. O-Ring
Creates the watertight seal.
5. Pipe Stop / Support Sleeve
Ensures correct pipe insertion and support.
💡 Important: The seal depends on proper installation—not excessive tightening.

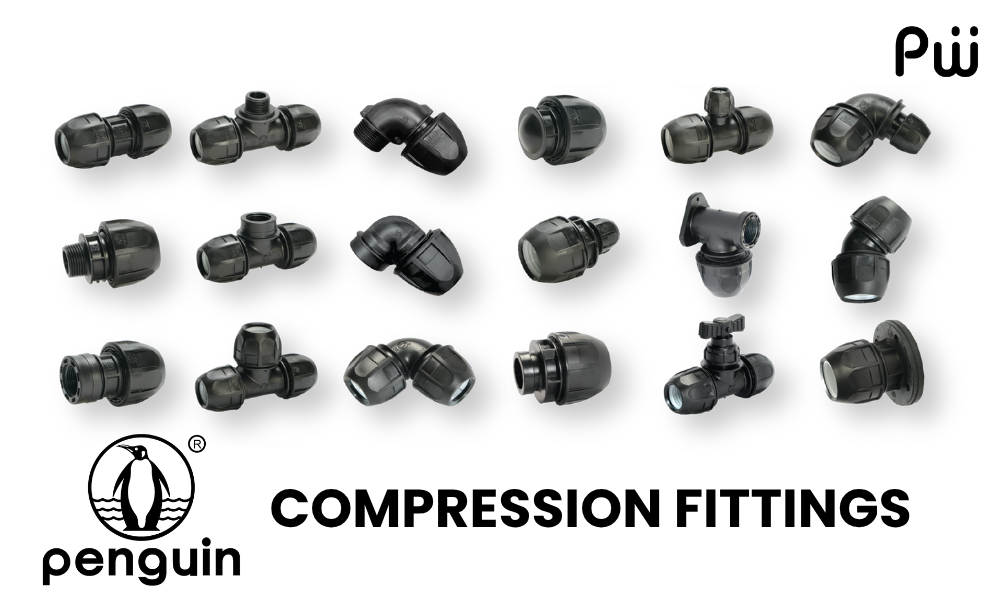

Common Types of HDPE Compression Fittings
You’ll typically see these in the field:
- Couplers – Connect two pipes
- Reducing Couplers – Connect different pipe sizes
- Elbows (45° / 90°) – Change direction
- Tees – Create branch connections
- End Caps – Close pipe ends
- Threaded Adapters – Connect to valves or metal pipes
- Repair Couplings – Fix damaged pipes
- Saddles – Add new branch connections
How to Choose the Right Fitting
To avoid leaks or failure, always check:
- Pipe size (OD): Metric vs IPS
- Pressure rating: Must match your system
- Material compatibility: Fluid + O-ring material (EPDM/NBR)
- Thread type: BSP or NPT (if applicable)
👉 The most common mistake is using the wrong pipe size
Installation Guide (Step-by-Step)
Follow this process for a leak-free connection:
- Turn Off Your Water Supply
- Cut the pipe straight
- Clean the surface of the pipe
- Unscrew the fitting nut, slide the nut and split ring onto the pipe.
- Mark the insertion depth
- Insert the pipe fully
- Tighten the nut properly (not too loose, not too tight)
- Test for leaks
💡 Tip: Most leaks happen due to poor preparation, not the fitting itself.
Compression vs Fusion: Which Is Better?
Each method has its role:
Compression Fittings
- Fast and simple
- Best for repairs and small pipes
Electrofusion
- Strong and reliable
- Requires power and equipment
Butt Fusion
- Best for large pipelines
- Requires space and machinery
👉 In practice: Use fusion for main pipelines, compression fittings for connections and repairs.
Polyware Compression Fittings Range
Polyware offers a complete range of HDPE compression fittings designed with the same core function: secure, leak-free connections, but with different design generations to suit various preferences and project needs.
- SMART COMPRESSION FITTINGS: The latest generation design, developed for improved usability and modern applications.
- MASTER ADVANCE COMPRESSION FITTINGS: A hybrid solution that combines familiarity with performance.
- MASTER COMPRESSION FITTINGS: The original and proven design, trusted across many installations.
