In agriculture irrigation systems, efficiency and reliability are critical—especially when expanding pipelines. The jumbo clamp saddle offers a faster way to create HDPE pipe branch connections without cutting or stopping water flow.
A jumbo clamp saddle for HDPE pipe allows you to create secure branch connections without cutting, welding, or shutting down the system—making it highly practical for irrigation use.
What is a Jumbo Clamp Saddle?
A jumbo clamp saddle is a heavy-duty mechanical fitting designed to create outlet connections on existing pipelines.
Instead of cutting into the pipe structure, the jumbo clamp saddle:
- Wraps tightly around the pipe surface
- Uses strong clamping force to seal
- Allows direct tapping for new branch connections

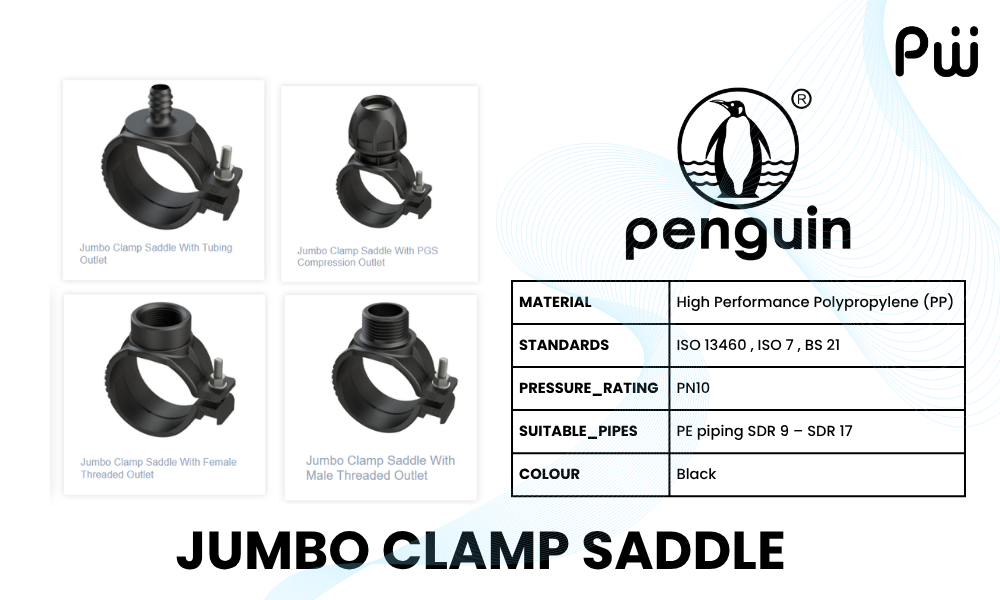

Product Range (Up to 63mm Outlet)
Polyware’s jumbo clamp saddle is built to suit irrigation systems and agricultural pipelines, supporting branch connections up to 63mm.
- Jumbo Clamp Saddle with PGS Compression Outlet
- Jumbo Clamp Saddle with Tubing Outlet
- Jumbo Clamp Saddle with Male Threaded Outlet
- Jumbo Clamp Saddle with Female Threaded Outlet
This flexibility allows farmers and contractors to connect different irrigation components easily—whether drip lines, sprinklers, or secondary distribution pipes.
Why Jumbo Clamp Saddle is Ideal for Irrigation Systems
1. One-Piece Innovative Clamping Structure
- Stronger grip on the pipe
- Better alignment during installation
- Reduced risk of leakage
2. Hassle-Free Mechanical Installation
- No fusion machine. No welding. No electricity required.
3. Multi-Outlet Application
- Supports multiple connection types, making it suitable for various system designs and expansions.
4. Time Saving up to 50%
5. Cost-Effective Solution
Jumbo Clamp Saddle vs Tee Fitting
When adding a branch connection, the traditional method involves cutting the pipe and installing a tee fitting.
However, this approach introduces risk and inefficiency.
Why Jumbo Clamp Saddle is Better:
1. Faster Installation
- Save up to 50% installation time.
2. No Structural Damage
- Tee fitting: Weakens pipe integrity
- Saddle clamp: Keeps pipe intact
3. Minimal Downtime
- Tee fitting: Requires shutdown
- Saddle clamp: Can be installed with minimal disruption
4. Lower Labor Requirement
- Only basic tools are needed, no heavy equipment.

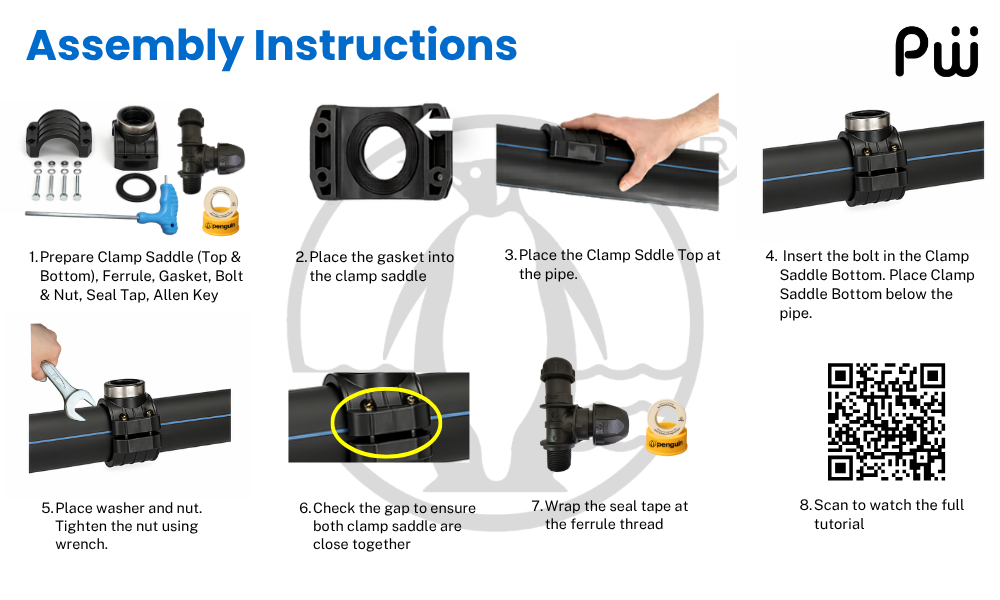

Installation Guide (Simple and Effective)
Follow these steps for proper installation:
- Prepare Clamp Saddle (Top & Bottom), Ferrule, Gasket, Bolt & Nut, Seal Tap, Allen Key
- Place the gasket into the clamp saddle
- Place the Clamp Sddle Top at the pipe.
- Insert the bolt in the Clamp Saddle Bottom. Place Clamp Saddle Bottom below the pipe.
- Place washer and nut. Tighten the nut using wrench.
- Check the gap to ensure both clamp saddle are close together
- Wrap the seal tape at the ferrule thread
- Click to watch the full tutorial
Where Jumbo Clamp Saddles Are Used
- Irrigation system expansion
- Adding new water distribution lines
- Connecting drip irrigation or sprinkler systems
- On-site pipeline modification
- Repair and upgrade works
Why Choose Jumbo Clamp Saddle?
Choosing the right connection method directly impacts system performance and long-term cost.
The jumbo clamp saddle offers:
- Long service lifespan
- Faster installation
- Reduced downtime
- Lower labor cost
- Leak-free performance
Connect with Polyware
With over 30 years of experience in Malaysia, Polyware is a trusted manufacturer specialising in high-quality HDPE pipe fittings and complete piping system solutions.
As a one-stop pipeline solution provider, we offer:
- Over 1,000 types of PE pipe fittings
- Tailor-made solutions for project-specific requirements
- In-house mould making (OEM available)
- Professional technical consultation support
- Industry training and knowledge sharing
Our house brands, PENGUIN (mechanical/compression fittings) and POLYFUSE (electrofusion solutions, butt fusion solutions, socket fusion solutions), are designed to deliver reliable, long-term performance across water supply, biogas, cable ducting, mining, irrigation, aquaculture and industrial applications.
