Fixing a cracked underground pipe is a frustrating and time-consuming task, especially when it happens repeatedly. Traditional rigid plastic pipes may work at the beginning, but over time, ground movement, temperature changes, and pressure fluctuations often lead to hidden leaks and costly repairs.
This is why High-Density Polyethylene (HDPE) pipe systems have become the preferred solution for modern irrigation systems in Malaysia and globally.
HDPE pipes are designed to be flexible, durable, and long-lasting. Unlike conventional materials, they can bend under pressure instead of cracking. Supplied in long coils, HDPE pipes allow seamless installation around landscapes such as trees and uneven terrain, reducing the need for multiple joints and fittings.
HDPE vs PVC: Why HDPE Pipes Perform Better in Irrigation Systems

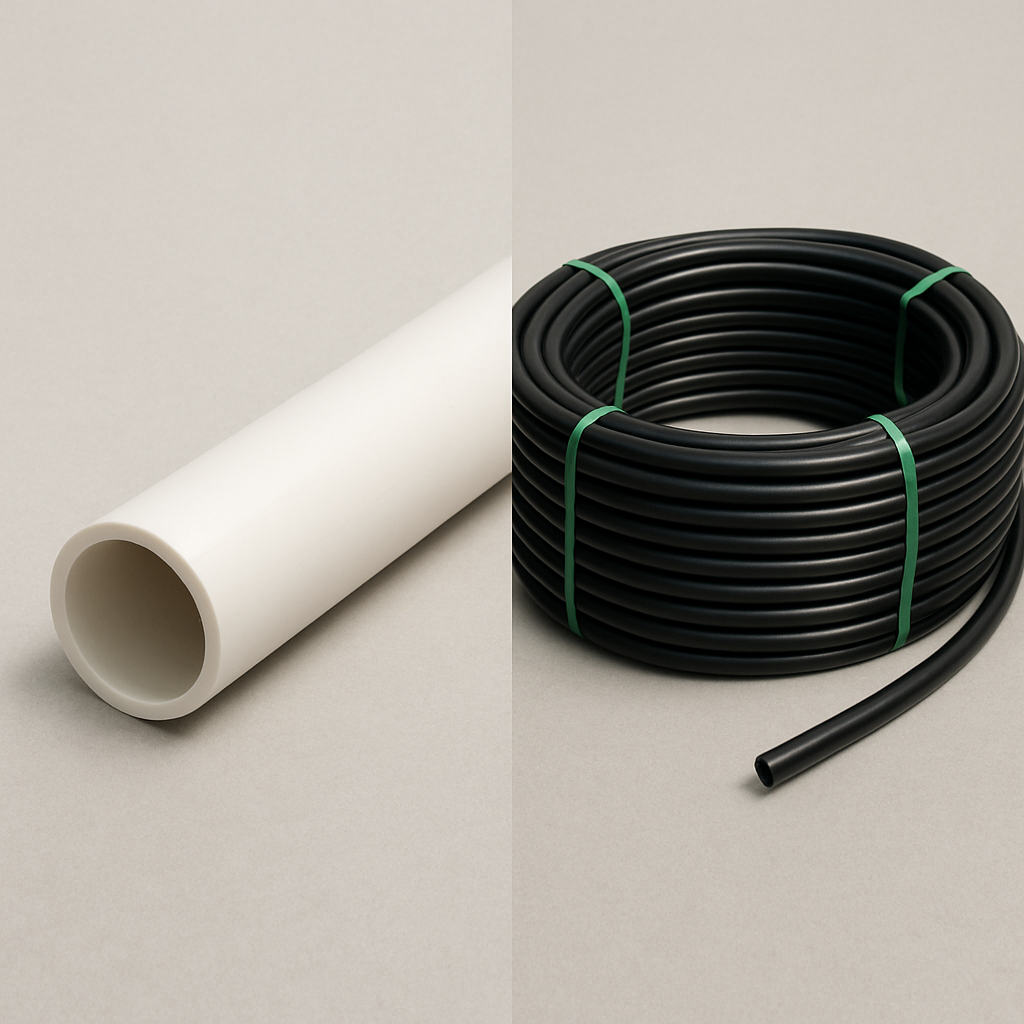

Traditional PVC pipes are rigid and prone to cracking, especially under environmental stress. When water freezes or soil shifts, PVC pipes can easily fail, leading to leakage and system downtime.
HDPE pipes, on the other hand, offer superior performance due to their flexibility and resilience.
Key Advantages of HDPE Pipes:
- Flexible under pressure – Expands slightly without cracking
- Resistant to ground movement – Ideal for uneven or shifting soil
- Leak-free joints – Reduces risk of water loss (NRW)
- Root intrusion resistance – No gaps for roots to penetrate
- UV resistant – Suitable for both above-ground and underground installation
- Corrosion resistant – Withstands fertilisers and chemicals
These features make HDPE pipes highly suitable for any climate, where heat, rainfall, and soil conditions can affect pipeline durability.
Decoding Pipe Strength: How to Choose the Right SDR Rating for Your Property

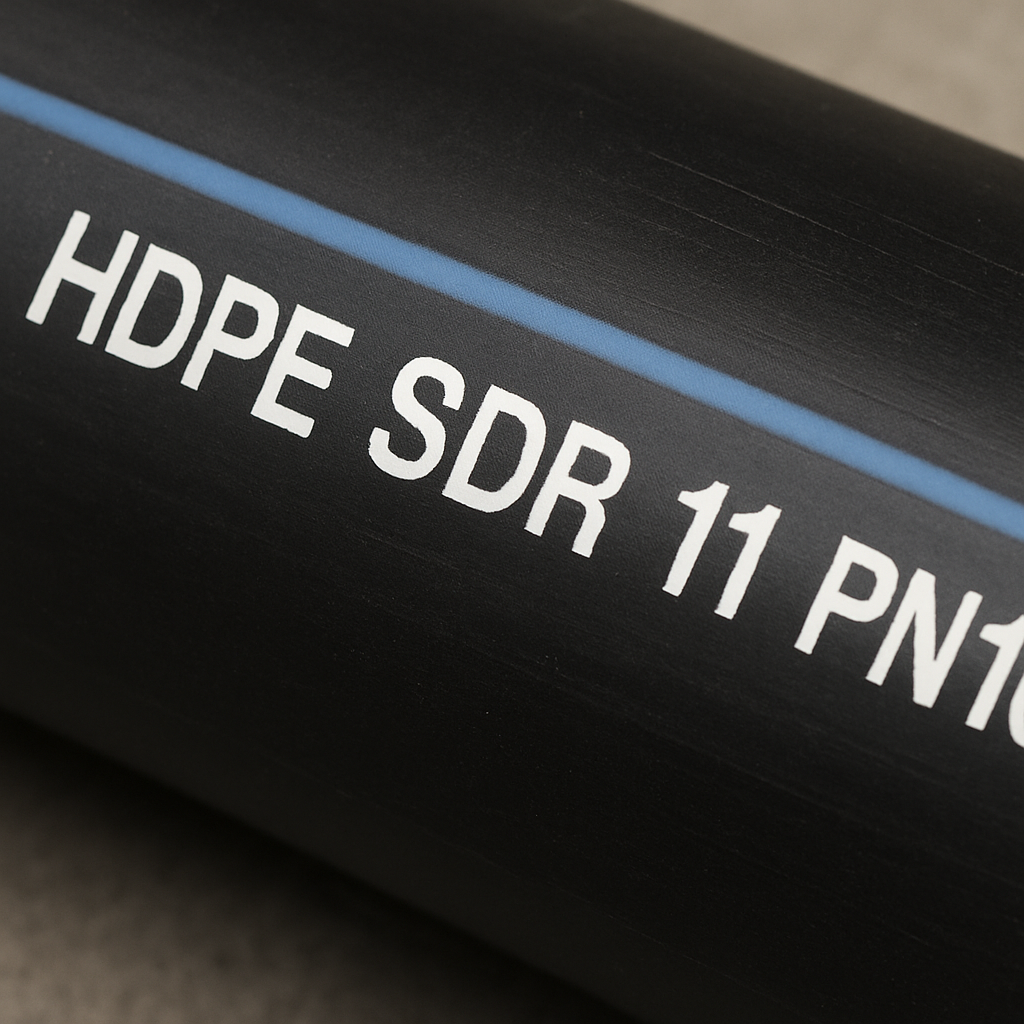

When selecting HDPE pipes for irrigation, one key factor to understand is the Standard Dimension Ratio (SDR).
SDR defines the relationship between the pipe diameter and wall thickness:
- Lower SDR = thicker wall = higher pressure resistance
- Higher SDR = thinner wall = lower pressure capacity
Common Connection Methods:
One of the biggest advantages of HDPE pipe systems is the ability to create leak-proof connections without glue.
1. Mechanical Compression Fittings
- Easy to install
- No special tools required
- Ideal for small-scale or DIY irrigation systems
2. Butt Fusion Welding
- Joins pipes into one continuous piece
- Provides maximum strength and zero leakage
- Suitable for large-scale or permanent installations
3. Electrofusion Fittings
- Built-in heating coils fuse the pipe internally
- Ideal for tight spaces or repair works
- Widely used in professional water distribution systems
These jointing methods significantly reduce leakage risks, supporting efforts to minimise Non-Revenue Water (NRW) in irrigation and water supply systems.
Getting Started: Simple Planning Checklist
Before installing your HDPE irrigation system, consider the following:
- Measure your land area to estimate pipe length
- Identify your water pressure requirements
- Select the correct SDR rating
- Choose suitable connection methods (mechanical or fusion)
Connect with Polyware
With over 30 years of experience in Malaysia, Polyware is a trusted manufacturer specialising in high-quality HDPE pipe fittings and complete piping system solutions.
As a one-stop pipeline solution provider, we offer:
- Over 1,000 types of PE pipe fittings
- Tailor-made solutions for project-specific requirements
- In-house mould making (OEM available)
- Professional technical consultation support
- Industry training and knowledge sharing
Our house brands, PENGUIN (mechanical/compression fittings) and POLYFUSE (electrofusion solutions, butt fusion solutions, socket fusion solutions), are designed to deliver reliable, long-term performance across water supply, biogas, cable ducting, mining, irrigation, aquaculture and industrial applications.
